Well Installation Azimuth Thruster:
China Well Installation Azimuth Thruster:
Product description:

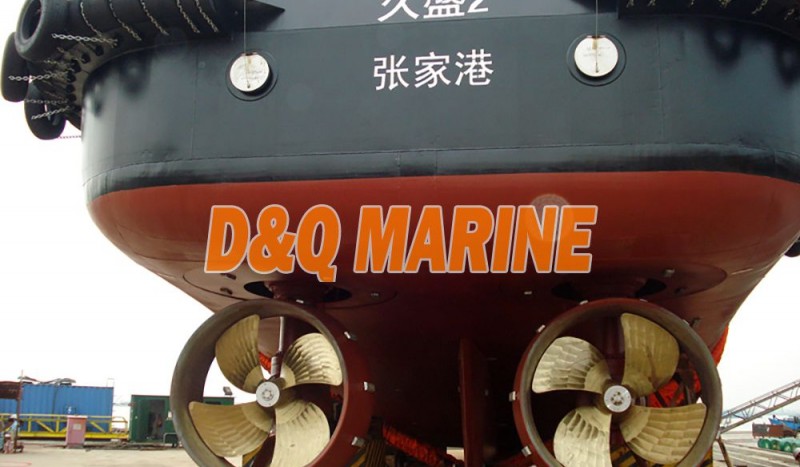

(1).The well installation is especially suitable for tugs, ferries well station, floating dock and survey ships. The azimuth thruster is mounted in the well. The stern length varies with the requirement of application.
(2).The top mounting plate of the well should, if at all possible, be above the waterline so that the azimuth thruster can be installed and removed when the ship is floating.
(3).The Well installation varies with the distance between the azimuth thruster and the diesel engine. When the engine room is very small, the azimuth thruster can be near to the diesel engine and suitable for application in long-range transmission between diesel engine and azimuth thruster.
Main technical parameters
Type | SRP12 | SRP50/51 | SRP100/103 | SRP152/151 | SRP300/151 | SRP300/226 | SRP300/300 | SRP352/300 | SRP330 | SRP550 | SRP1010 | SRP1212 | |
MAX.Input Power | 45 | 100 | 210 | 300 | 255 | 350 | 480 | 490 | 620 | 920 | 1250 | 1650 | |
kWHp | 61 | 135 | 285 | 400 | 347 | 476 | 650 | 666 | 843 | 1250 | 1700 | 2244 | |
MAX.InputTorqueN.m | 200 | 420 | 850 | 1675 | 2500 | 2050 | 2800 | 5200 | 3300 | 5423 | 14740 | 19500 | |
(Sf=1) | |||||||||||||
MAX.Input Speed r/min | 2300 | 2500 | 2350 | 2000 | 1000 | 1800 | 1800 | 1000 | 1800 | 1800 | 1000 | 1000 | |
Reduction Ratio | i | 1.93 | 2.5 | 2.68 | 3.46 | 2.37 | 3.34 | 3.96 | 2.2 | 4.04 | 5.059 | 3.257 | 3.58 |
I upper | 1.7 | 1.64 | 1.65 | 1.53 | 1.045 | 1.63 | 1.63 | 0.9032 | 1.53 | 1.647 | 1.286 | 1.286 | |
I lower | 1.13 | 1.52 | 1.62 | 2.26 | 2.26 | 2.05 | 2.43 | 2.43 | 2.64 | 3.071 | 2.533 | 2.79 | |
Propeller Diameter mm | MAX | 500 | 800 | 950 | 1150 | 1150 | 1350 | 1550 | 1550 | 1500 | 1800 | 2100 | 2300 |
MAX | 700 | 900 | 1100 | 1250 | |||||||||
PAL Length mm | MAX | 2250 | 2800 | 2800 | 4250 | 4400 | 4750 | 4750 | 4750 | 5000 | |||
MAX | 350 | 875 | 980 | 1400 | 1400 | 1750 | 1750 | 2000 | 1700 | 2600 | 2800 | 3000 |
