Oblique-Flow Pipeline Fan:
China Oblique-Flow Pipeline Fan:
The oblique-flow pipeline fans of SJG series is a kin of derivative product of the SWF series,and its impeller is axial-flow fan heat deroration,using drum hairdryer,thereby changing the direction of air-flow to achieve oblique flow.Its characteristics:on the same plane,its flow rate is greater than that of centrifugal fans as well as its full pressure higher than that of axial-flow fans and its volune smaller than that of centrifugal fans,and meanwhile it is blessed with wider effect area,low noise,less occupies,easy installation and other advantages.This fan won't have an effect on the piping layout and direction;and it is suited for pressuring and wind delivering & exhausting especially in space-constrained computer rooms.SJG series products are widely used in ventilation places such as industrial and mining enterprises,hotels,restauranta,museums,stadiums and high-rise buildings.
Specification:
| machine(No) | rotation speed(r/min） | matching motor(kW) | volume flow(m³/h) | total pressure（Pa) | noise dB(A) |
| 2.0 | 2900 | 0.18 | 400~1200 | 440~216 | ≦62 |
| 1450 | 0.09 | 200~600 | 110~54 | ≦58 | |
| 2.5 | 2900 | 0.55 | 600~2000 | 720~440 | ≦64 |
| 1450 | 0.18 | 300~1000 | 180~110 | ≦60 | |
| 3.0 | 2900 | 1.1 | 1000~4000 | 1040~520 | ≦65 |
| 1450 | 1.37 | 500~2000 | 260~130 | ≦61 | |
| 3.5 | 1450 | 1.55 | 1000~4000 | 320~110 | ≦61 |
| 960 | 0.25 | 800~2500 | 140~50 | ≦59 | |
| 4.0 | 1450 | 0.75 | 1500~5000 | 420~220 | ≦62 |
| 960 | 0.37 | 1000~4000 | 190~51 | ≦60 | |
| 4.5 | 1450 | 1.1 | 200~7000 | 580~250 | ≦69 |
| 960 | 0.37 | 1500~5000 | 360~100 | ≦61 | |
| 5.0 | 1450 | 2.2 | 2000~10000 | 710~345 | ≦69 |
| 960 | 0.75 | 1500~6000 | 360~150 | ≦63 | |
| 6.0 | 1450 | 5.5 | 4000~18000 | 1200~380 | ≦75 |
| 960 | 1.5 | 3000~11000 | 480~240 | ≦65 | |
| 960 | 3 | 4000~18000 | 600~260 | ≦72 | |
| 7.0 | 960 | 5.5 | 6000~25000 | 780~400 | ≦73 |

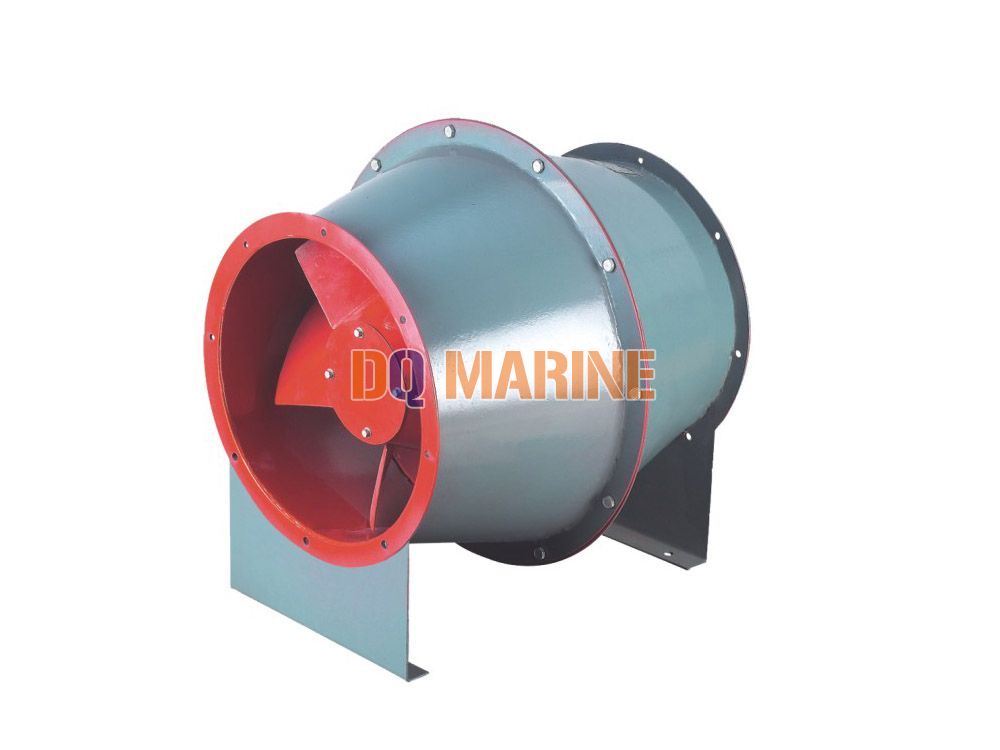

Picture：
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
