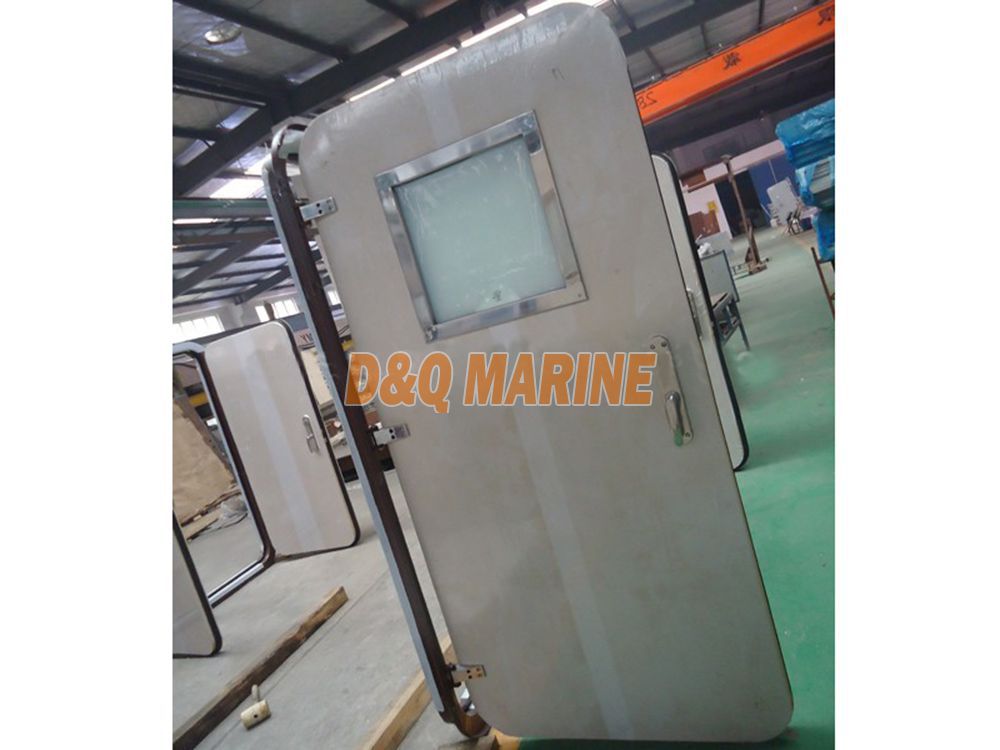

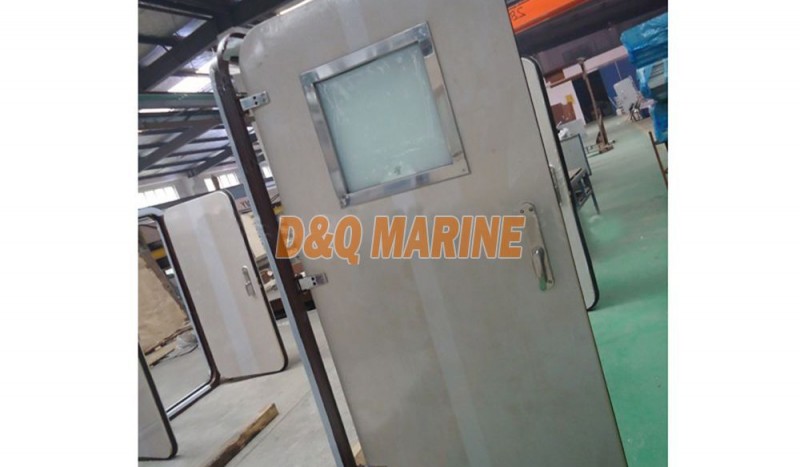

Oil Tanker Drilling Platform Gastight Door:
Oil Tanker Drilling Platform Gastight Door:
This door used for ships of oil tanker that flash point ＜ 60℃, drilling platform, chemical vessel, LPG and NPG vessel and offshore tug etc.
|

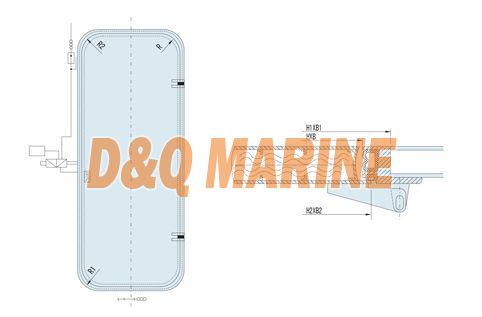

Size of Doorway H B |
Size of
B.H.Opening H1 B1 |
SIZE OF OUTLINE H2 B2 |
WEIGHT KG | |
| STAINLESS STEEL | Aluminum alloy | |||
| 1600 600 R100 | 1685 685 R142 | 1630 630 | 64 | 44 |
| 1650 650 R100 | 1735 735 R142 | 1680 680 | 70 | 48 |
| 1700 700 R100 | 1785 785 R142 | 1730 730 | 78 | 52 |
| 1750 700 R100 | 1835 785 R142 | 1780 730 | 80 | 54 |
| 1700 750 R100 | 1785 835 R142 | 1730 780 | 83 | 56 |
| 1750 750 R100 | 1835 835 R142 | 1780 780 | 85 | 59 |
| 1800 750 R100 | 1885 835 R142 | 1830 780 | 87 | 62 |
| 1800 800 R100 | 1885 885 R142 | 1830 830 | 92 | 66 |
