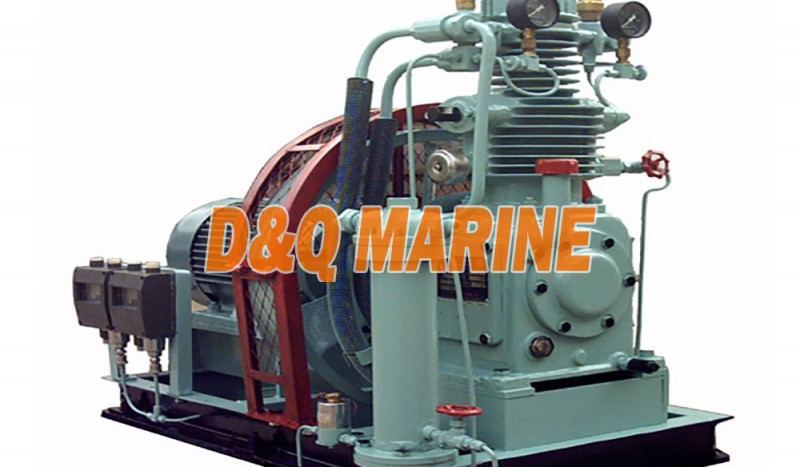

LSHC Marine Air compressor:
Main Technical Parameter
| Compressor Model | LSHC-20B | LSHC-30A | LSHC-40A | MSHC-40A |
| Type | Vertical Air-Cooled 2 stage Compression | |||
| Quantity of Air Supply (m3/h) | 5 | 13.5 | 20 | 20 |
| Pressure Rating (MPa) | 3 | |||
| Stalk Power (kw) | 1.6 | 4 | 5.5 | 5.5 |
| Rotation Rating (r/min) | 940 | 960 | ||
| Lubricating System | Splash Lubrication | |||
| Lubricate Trademark | L-DAB-100（GB12691) | |||
| Type of Unloader | Manual,Total closure suction type or Magnetic Unloader Valve | |||
| Method of Driving | Direct Coupling | |||
| Motor | ||||
| model | Y112M-6-H | Y132S-4-H | Y132M-6-H | Y160M2-8-H |
| Power (kw) | 2.2 | 5.5 | 5.5 | 5.5 |
| Rotation (r/min) | 940 | 1440 | 960 | 870 |
| Gradeprotection | IP44 | |||
| Ins Class | B | |||
| Voltage(V) | 380 | 380 | 380 | 440 |
| Frequency( HZ) | 50 | 50 | 50 | 60 |
| Shape size(mm) | 670×450×470 | 1140×520×810 | 1020×580×900 | 1020×580×900 |
| Weight(kg) | 130 | 280 | ||
