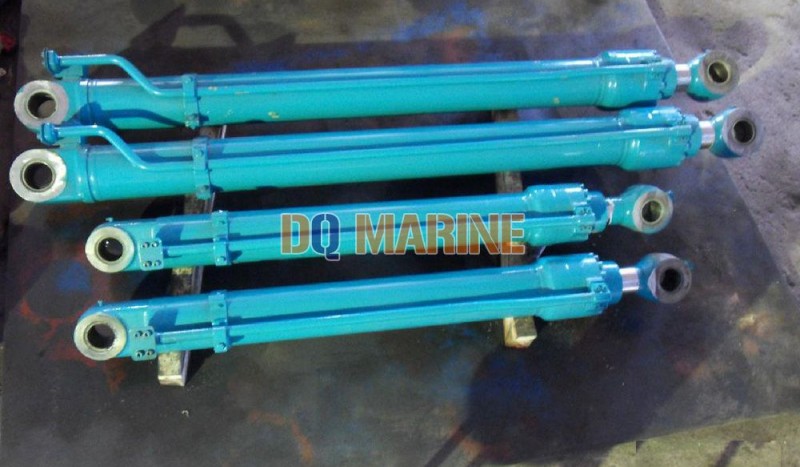

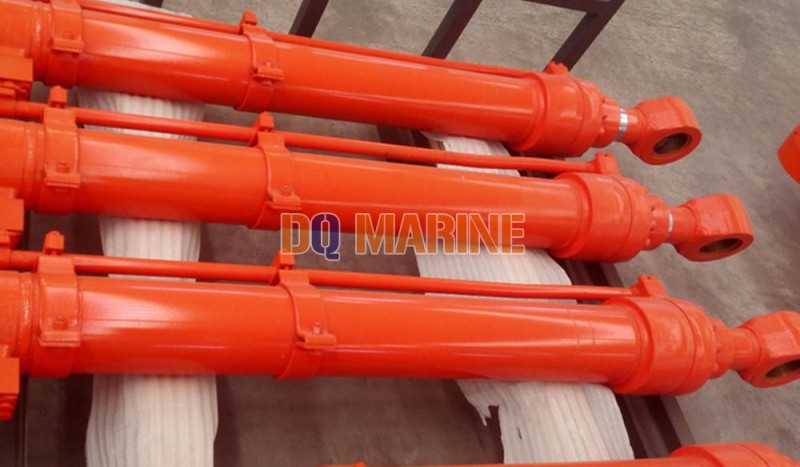

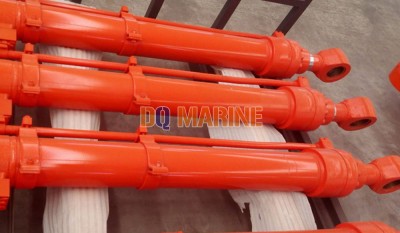

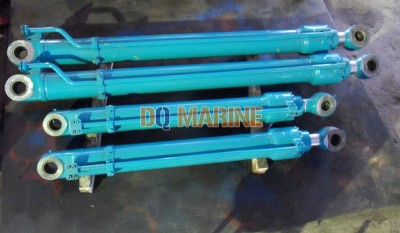

GHF1 Series High Pressure Hydraulic Cylinder:
GHF1 Series High Pressure Hydraulic CylinderIntroduction
This series of hydraulic cylinder has the characteristics of simple structure, reliable operation, convenient assembly and disassembly, easy maintenance, multi buffering device and various mounting forms. It is suitable for hydraulic transmission of construction machinery, lifting, conveying machinery and mining machinery.
Detailed Product Description
Oil
cylinder
1.Working pressure: 31.5MPa
2.Bore size: 80~250mm
3.Control safe and reliable
Type Selection
GHF1 single-pole and double-acting piston high pressure hydraulic cylinder
GHF1-D/d
G--single-pole and double-acting piston hydraulic cylinder
H--Pressure 31.5Mpa
F--Cylinder head flange connection
1--Design No.
D/d –bore (mm)/ piston rod diameter (mm)
| Cylinder bore D (mm) | Ф | Ф1 | Rod Dia. d(mm) | d1(mm) | b (mm) | L1 (mm) | R (mm) | K1 (mm) | M1 | |
| Speed ratio | Bearing bushing or articulating bearing | |||||||||
| 1.66 | 2 | |||||||||
| 80 | 111 | 132 | 50 | 56 | 40 / GEG40ES | 45 | 60 | 56 | 410 | M18 x 1.5 |
| 90 | 118 | 142 | 56 | 63 | 45 / GEG45ES | 50 | 70 | 65 | 450 | M22 x 1.5 |
| 100 | 130 | 160 | 63 | 70 | 50 / GEG50ES | 55 | 80 | 75 | 490 | |
| 110 | 137 | 178 | 70 | 80 | 60 / GEG60ES | 60 | 85 | 80 | 530 | |
| 125 | 156 | 200 | 80 | 90 | 60 / GEG60ES | 70 | 95 | 90 | 580 | M27 x 1.5 |
| 140 | 177 | 225 | 90 | 100 | 70 / GEG70ES | 80 | 105 | 100 | 630 | |
| 160 | 200 | 250 | 100 | 110 | 80 / GEG80ES | 90 | 120 | 115 | 690 | M33 x 2 |
| 180 | 221 | 280 | 110 | 125 | 90 / GEG90ES | 100 | 130 | 125 | 740 | |
| 200 | 246 | 310 | 125 | 140 | 100 / GEG100ES | 110 | 145 | 140 | 810 | M42 x 2 |
| 220 | 270 | 345 | 140 | 160 | 110 / GEG110ES | 120 | 170 | 165 | 900 | |
| 250 | 320 | 385 | 160 | 180 | 120 / GEG120ES | 140 | 185 | 180 | 970 | |
| NOTE: 1.Rod end with cushioning, K2=30; Rod end without cushioning, K2=0 2. The highest oil pollution levels, GB/T14039-19/16 | ||||||||||
