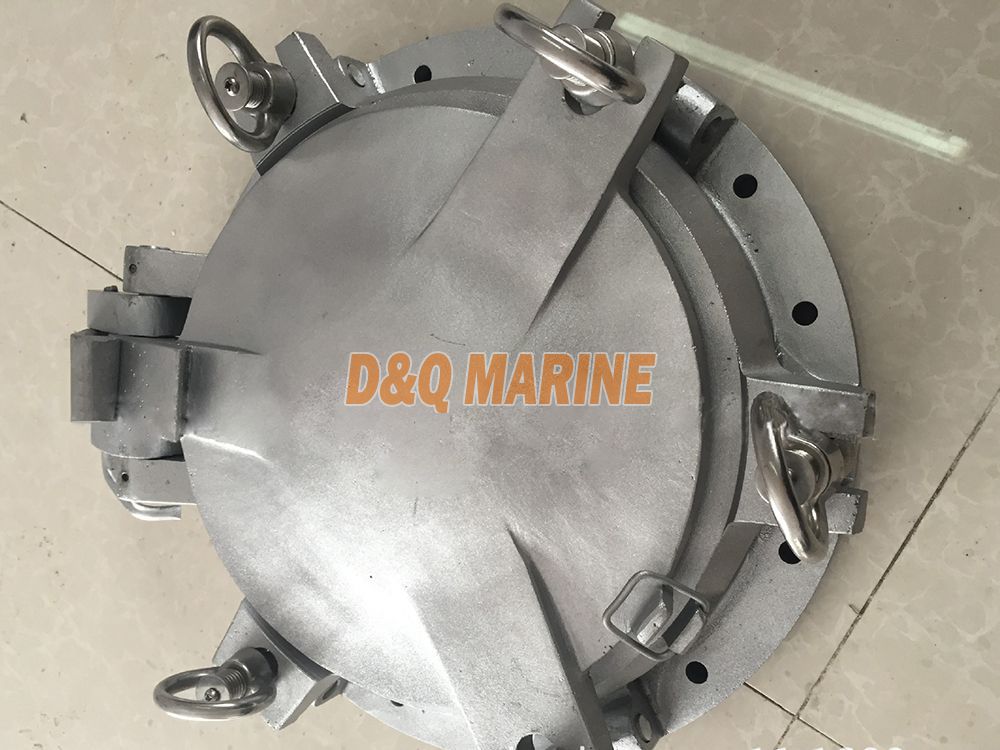

A0 Class Fireproof Side Scuttle:
A0 Class Fireproof Side Scuttle：
| NO. |
NOMINAL SIZE WXH |
B.H. OPENING
SIZE W1XH1XR1 |
SIZE OF OUTSIDE W2XH2 |
MAIN GLASS
THICK. t |
SIZE OF GLASS W3XH3 |
|
| HEAVY | MEDIUM | |||||
| 1 | 355X500 | 455X600XR126 | 487X632 | 10 | 8 | 390X535 |
| 2 | 450X630 | 550X730XR126 | 582X762 | 12 | 8 | 485X665 |
| 3 | 500X710 | 600X810XR126 | 632X842 | 15 | 10 | 535X745 |
| 4 | 900X630 | 1000X730XR126 | 1032X762 | 19 | 12 | 935X665 |
| 5 | 1100X710 | 1200x810XR126 | 1232X842 | 19 | 12 | 1135X745 |
| 6 | 1200X800 | 1300x900XR126 | 1332X932 | 19 | 15 | 1235X835 |
